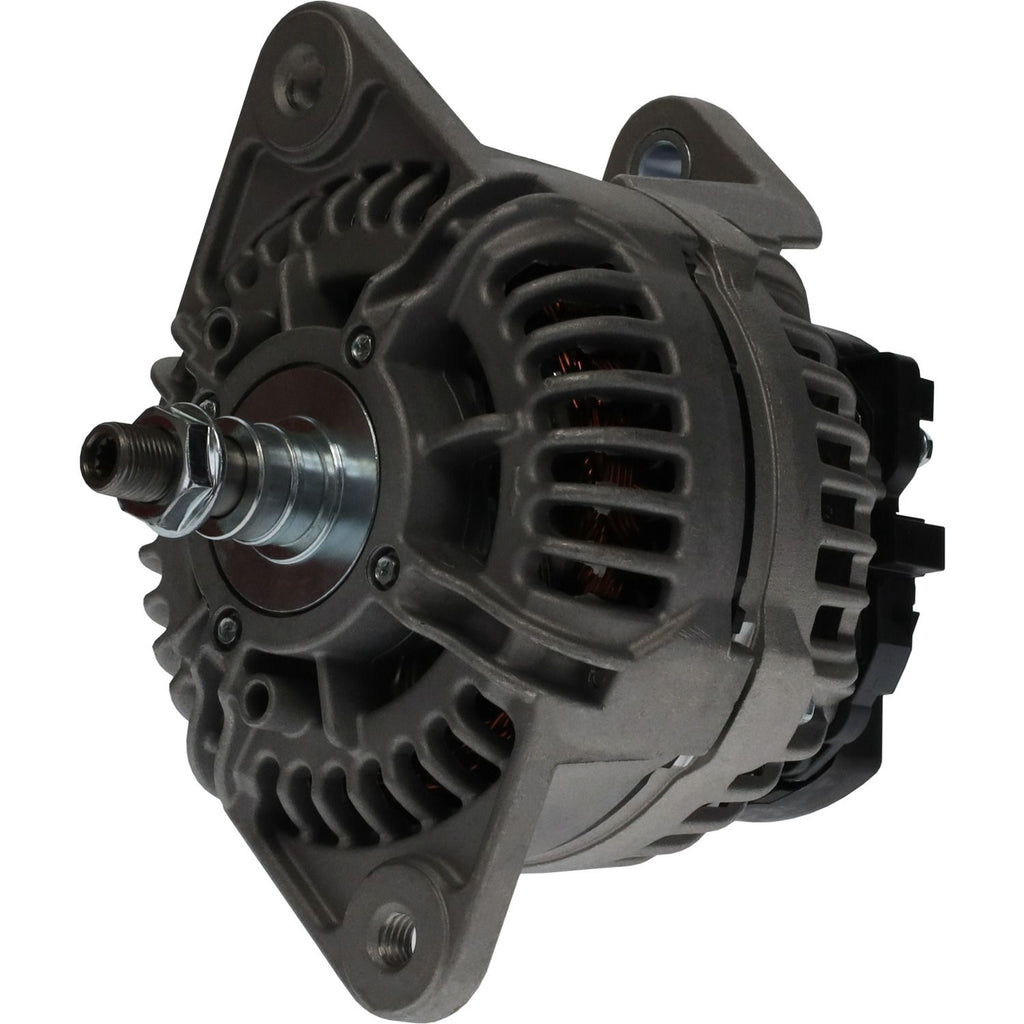

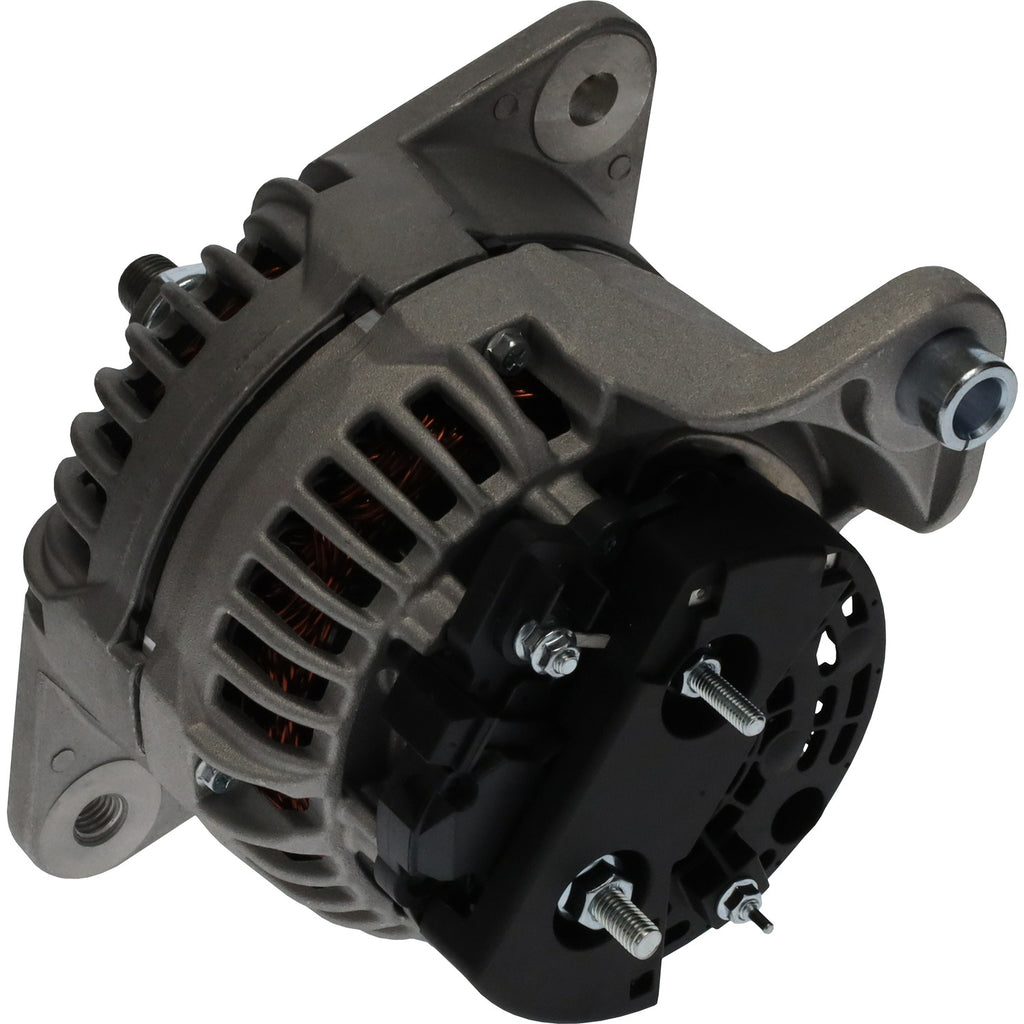

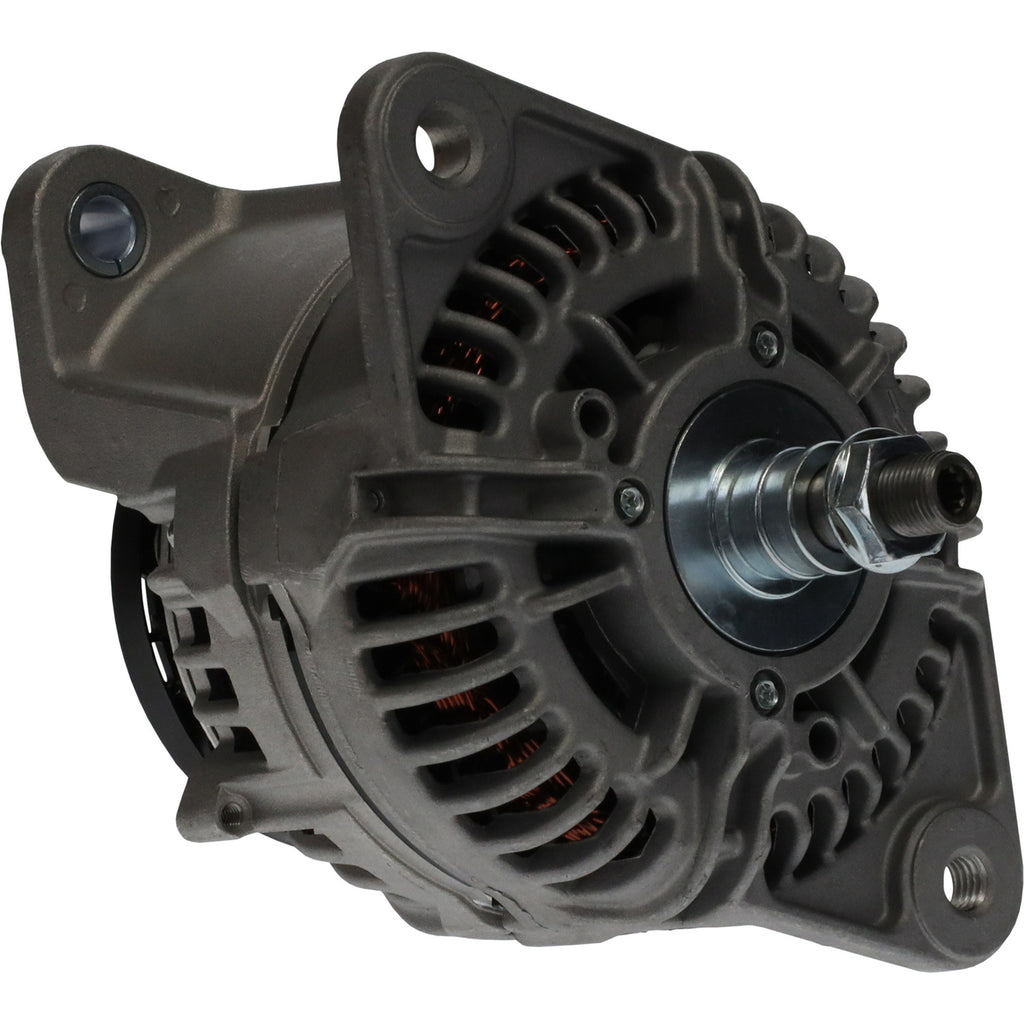

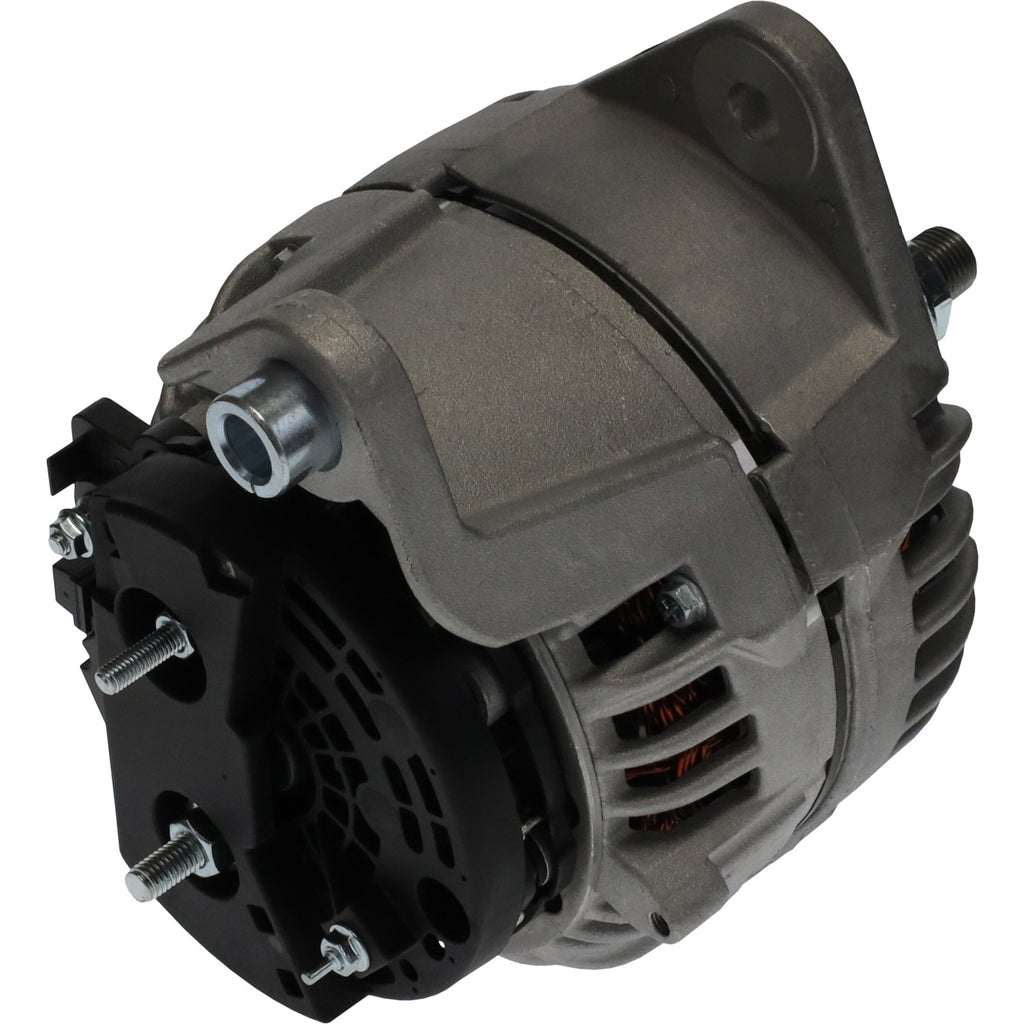

220-5399 *NEW* Alternator for Bosch, Case IH 12V 200A
WAI
$376.55
SKU: 220-5399N
Contact us to check availability - 888-860-4339 ~ contactus@smithcoelectric.com
220-5399 *NEW* Alternator for Bosch, Case IH 12V 200A
SPECS:200 Amp/12 Volt, w/o Pulley
SPECS FOR:Bosch IR/IF
MFR:BOSCH
DESIGN:IR/IF
VOLTAGE:12
AMPERAGE:200
ROTATION:CW
PLUG CLOCK:04:00 Plug Clock
PULLEY CLASS:W/O PULLEY
FEATURE 1:100% New
AC TAP Y/N:Y
BRUSHLESS:No
DIST BTWN MTG FT MM H:101.2
DE FT TO PULLEY 1ST GRV MM K:16.3
DE TO ROTOR SHFT END MM L:69.8
GROUND:N
MTG CONFIG CODE:C
MOUNT TYPE:N/A
PULLEY GROOVE OD:N/A
DIST BTWN MTG EAR MM:101.2
SPLIT MTG EAR THK MM:27
POLARITY:B+
BRUSHLESS DESIGN:N/A
ONE WIRE CAPABLE:Yes
COOLING METHOD:Alternator cooling via internal fan
Replaces: 220-5399 220-5399N 12881 12881N Bosch 0124625059, 0124625123, Case 87715398, Chrysler 0504338098, 504338098, CNH Industries 504338098, 504338098R, 87715398, 87715398R, Fiat 87715398, Letrika (Iskra) 11.204.299, 11.204.384, Letrika (Iskra) Sales IA 1512, IA1512, Letrika (Iskra) Tech. AAN5825, AAN8194, Mahle MG 41, New Holland 87715398
Used On: Case IH (2006-2023) New Holland (2006-2024) New Holland Industrial (2008-2008)
