5040-1751 *NEW* Armature for Delco 10MT Low Torque Starters 12V CW

WAI

$49.46
SKU: 5040-1751

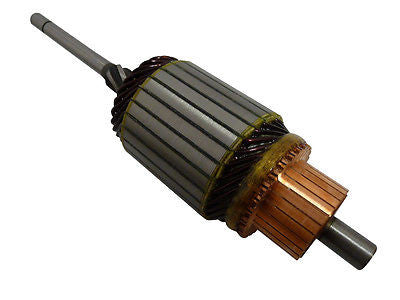

5040-1751 *NEW* Armature for Delco 10MT Low Torque Starters 12V CW

Brand New High Quality Replacement Armature for Delco 10MT Low Torque DD Starters

OEM: Delco
Voltage: 12
Condition: New
Rotation: CW
Body OD: 2.701in / 68.6mm
CE OD: 0.563in / 14.3mm
DE OD: 0.469in / 11.9mm
Length: 11.567in / 293.8mm
CE to Bearing / Bushing Stop: 0.906in / 23mm
DE to Bearing / Bushing Stop: 6.28in / 159.5mm
Number of Comm Bars: 27
Lam Stack Thickness: 9.961in / 253mm
Number of Splines: 6
Spline Type: Spiral
Notes:

  • Low Torque
  • 51/64" Spacer at DE
Application: Delco 10MT Low Torque Starters

References:
5040-1751 61-169 300-12120 1926626 1935851 D4108 87849 1751 64-01-4973 RAS5101
