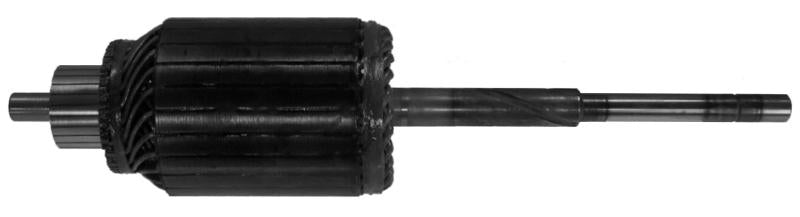

5040-2014 Reman Armature for Delco 30MT Starters 12V CW

Romaine

$282.50
SKU: 5040-2014

Contact us to check availability - 888-860-4339 ~ contactus@smithcoelectric.com

5040-2014 Reman Armature for Delco 30MT Starters 12V CW

  • VOLT12
  • CONDITIONRemanufactured
  • ROTATION DIRECTIONClockwise
  • BODY OD3.386"
  • BODY OD86mm
  • CE OD0.559"
  • CE OD14.200mm
  • DE OD0.559"
  • DE OD14.200mm
  • LENGTH14.748"
  • LENGTH374.600 mm
  • CE TO STOP21.400
  • DE TO STOP203
  • LAM STACK THICKNESS3.402"
  • LAM STACK THICKNESS86.400mm
  • NUMBER OF SPLINES6
  • SPLINES TYPESpiral

    •

    Replaces: 5040-2014 42-2014 2014 300-12149 1940151 64-01-4984
