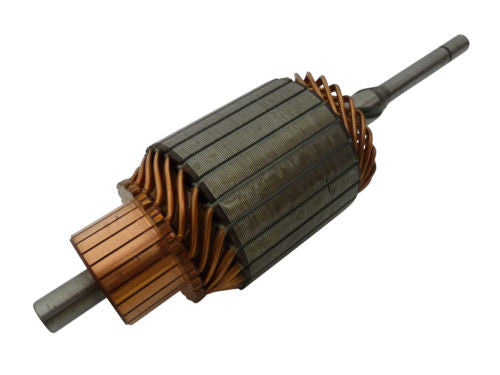

5040-2280 *NEW* Armature for Delco 10MT Series Starters High Torque 12V CW

WAI

$39.97
SKU: 5040-2280

5040-2280 *NEW* Armature for Delco 10MT Series Starters High Torque 12V CW

Brand New High Quality Replacement Armature for Delco 10MT Series High Torque 12V CW Starters

OEM: Delco
Voltage: 12
Condition: New
Rotation: CW
Body OD: 2.937in / 74.6mm
CE OD: 0.563in / 14.3mm
DE OD: 0.469in / 11.9mm
Length: 110.31in / 280.2mm
CE to Bearing/Bushing Stop: 0.882in / 22.4mm
DE to Bearing/Bushing Stop: 4.882in / 124mm
Number of Comm Bars: 23
Lam Stack Thickness: 2.559in / 65mm
Number of Splines: 3
Spline Type: Spiral
Notes:

  • High Torque
Application: Delco 10MT High Torque 12V CW Starters

References:
5040-2280 10470773 10490501 10498863 1940624 1965724 1970548 D4111 D4121 D4124 D4143 D4159 1759 2280 300-12099 300-12037 61-107 61-107-1 61-107-9 42-2280 42-2280N RAS236 RAS236N 64-01-3913 83075
